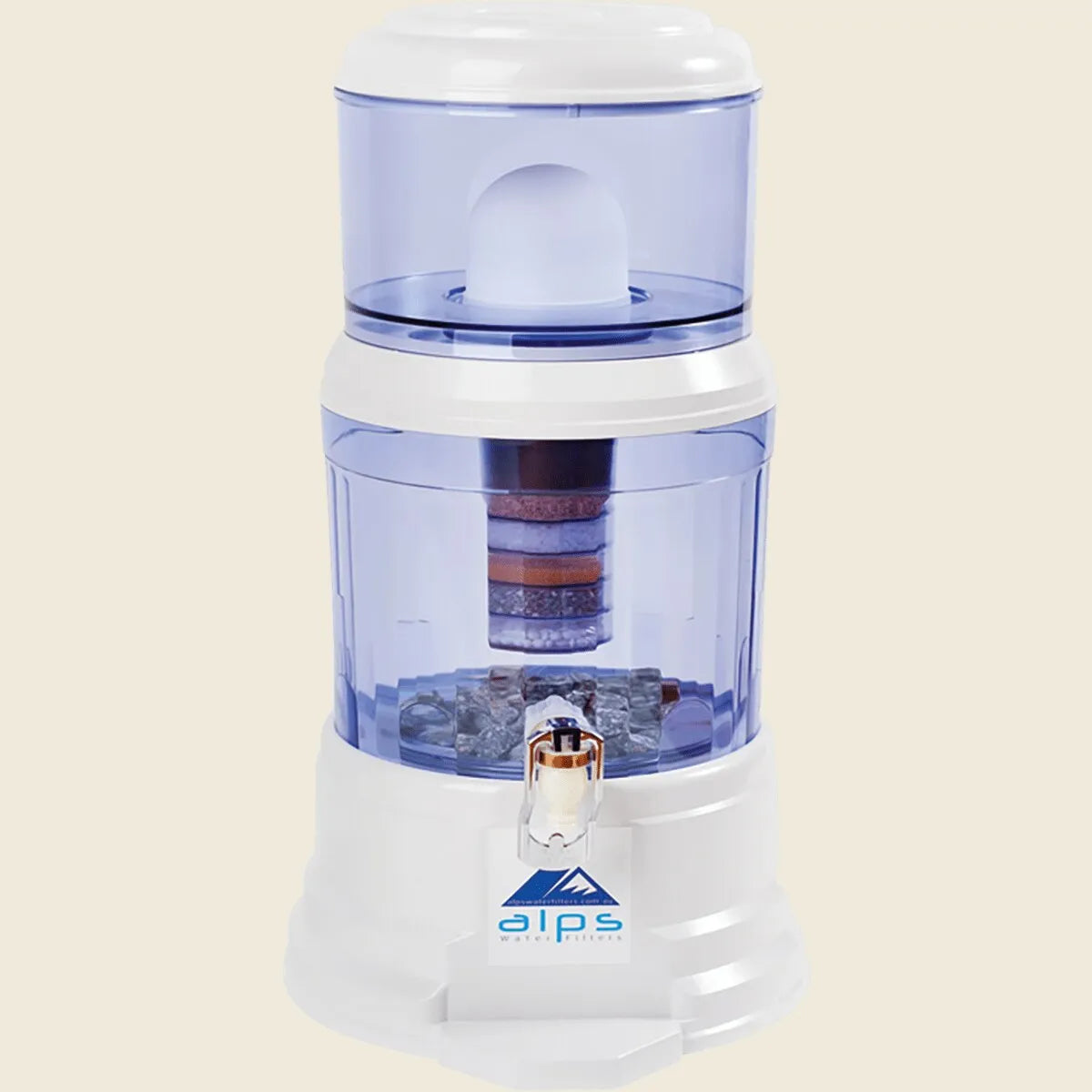

Water Filtration Unit 10 Stage Filtration 12L

Enjoy a consistent supply of filtered drinking water without relying on electricity. The Alps water filtration unit uses a natural gravity-fed, 10-stage filtration process designed to remove contaminants from tap water.

• 10-stage filtration: A ceramic dome, six-layer cartridge, mineral stones, magnetic tap, and optional Prill Beads work across the filtration system.
• 12-litre capacity: The top tank holds 4 litres, while the lower tank holds 8 litres.
• Compact size: Fully assembled, the unit measures 58cm high and 35.5cm across the base, including the front lip.
• Simple maintenance: The ceramic dome and cartridge are typically replaced every 6 to 9 months, depending on water quality and usage.
• Mineral stones: Replace the stones every 12 to 18 months, with boiling and natural drying recommended during maintenance.

Before first use, soak the ceramic dome for at least 10 minutes and the six-layer cartridge for at least two hours. Flush the cartridge every 2 to 3 months under running water to help maintain water flow. The Prill Beads are optional and remain inside their bags during use.

Its two-tank design suits kitchens, offices, and shared spaces where you want filtered water ready to dispense from the lower tank.

10 STAGE FILTRATION:

ALPS is a natural gravity fed water filtration system that is designed to remove all types of contaminants in tap water via a ten stage filtration process

Stage 1:Ceramic Dome: (Replace every 6 to 9 months)

Immerse/soak in water at least ten minutes, which rids the dome of any dust particles from the manufacturing process and primes it for use. Assemble ceramic dome via butterfly nut & washer, onto the smaller (top) container as illustrated re (SPL-2/3). Gently remove and gently clean the dome periodically with a soft toothbrush/fabric under running water, especially if/when residue forms on the dome surface.

Stage 2 to 7: 6 layer Cartridge: (Replace every 6 to 9 months)

Immerse/soak in water for at least two hours – this rids the cartridge of any dust particles from the manufacturing process and primes it for use. After soaking the 6-stage filter cartridge, place it under running water and then give it a good shake. This will remove any air pockets and give you a good flow. (Repeat this process if ever you find your unit’s water flow is slowing down). Screw cartridge onto threaded plate (SPL-4) and place onto lower/bottom water tank cover (SPL-6). Flush/backwash the cartridge every 2-3 months under running water.

Stage 8: Mineral Stones: (8th stage – Replace every 12 – 18 months)

Place mineral stones in boiling water for 5 minutes, then place outdoors to dry naturally. Spread them evenly to cover the surface area on the bottom of the lower tank (SPL-8). Repeat this process every 6 months for optimum mineral replacement.

Stage 9: Magnetic Tap:

Attach to outlet on lower/bottom water tank making sure that one washer is fixed internally and the other externally. Please do not use excessive force when installing and or using the tap.

Stage 10: PRILL BEADS (OPTIONAL)

Rinse Prill Bags under running water for 2-3 minutes. Place Prill Bags on top of stones on either side of the tank. DO NOT take Prill Beads out of the bags.

The ALPS water filter represents a natural, simple, easily maintained and cost effective unit, that will provide you with a consistent supply of clean and healthy drinking water, essential for general health, longevity and quality of life.

SIMPLE ASSEMBLY:

Assembly is simple along with a straight forward maintenance routine. All parts and components are inexpensive and readily available. Domes and cartridges are typically replaced every 6 – 9 months, depending on your tap water quality and quantity used. Mineral stones are generally replaced every 12 – 18 months.

DIMENSION:

Fully assembled: 58cm (Height) x 35.5cm (Base including front lip)

CAPACITY:

The bottom tank holds 8L and the top tank holds 4L to give a combined total of 12L.
